TPO and Volume profile
View Count: 90
| [2025-08-31 18:50:50] |
| User361031 - Posts: 1 |
|

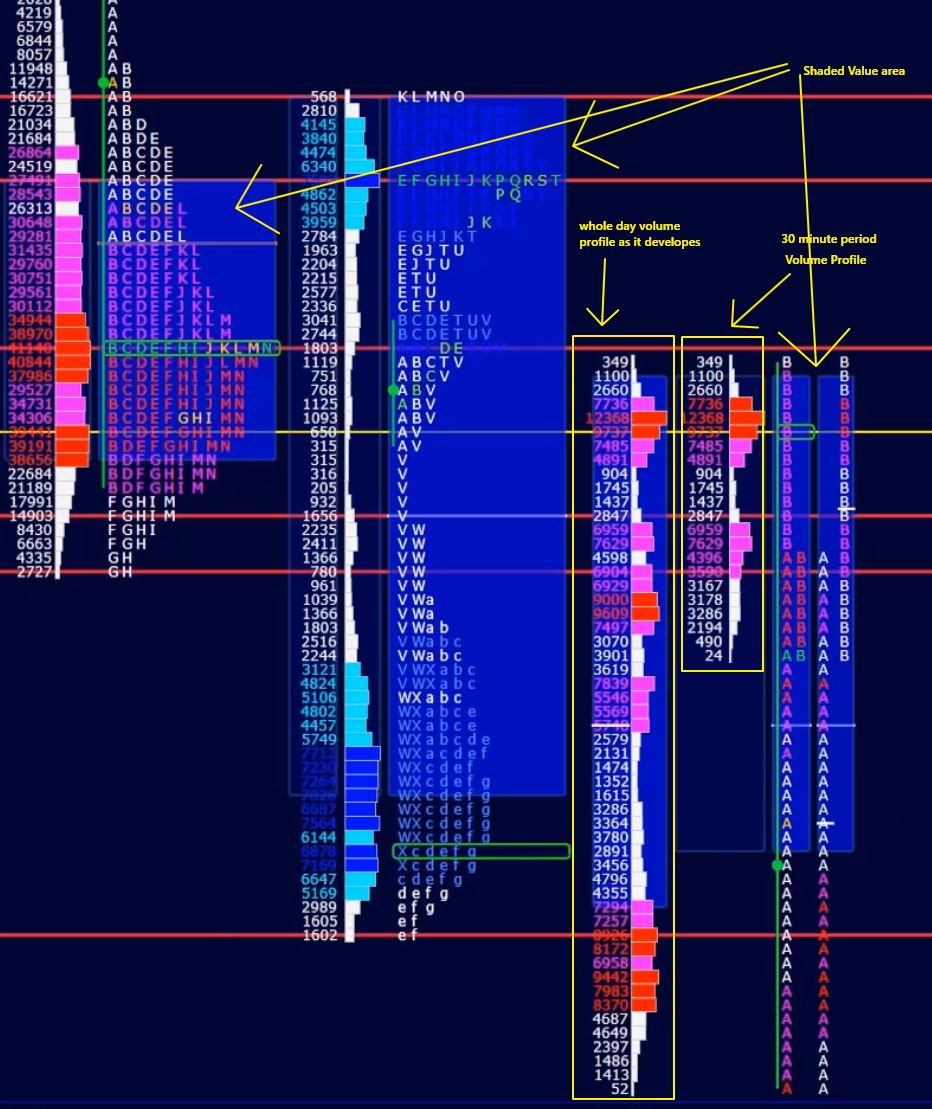

Hi , Could you please guide me on how I can display both a 30-minute volume profile and the full-day volume profile as it develops next to my TOP chart, similar to the example in the attached image? Additionally, is there a way to shade the value area as shown in the picture? Thank you for your help! Best regards, |
 question.JPG / V - Attached On 2025-08-31 18:46:25 UTC - Size: 161.3 KB - 30 views |
| [2025-09-01 15:36:34] |
| John - SC Support - Posts: 41652 |
|
What that image shows is not possible using the built-in tools in Sierra Chart, and we do not think it would be possible with a custom study. So we are not sure if that is an image from Sierra Chart. When you add a "Volume by Price" study to a TPO chart, the Volume by Price will default to being associated with the TPO. You can then add a separate 30 minute Volume by Price study where it will be displayed to the far right of the chart (separate from the TPOs). Refer to the following: Volume By Price Study: 30 Minute Volume Profile at End of TPO Profile Chart With regards to coloring the background of the Value Area rather than the letters/blocks themselves, refer to the following Input: Time Price Opportunity (TPO) Profile Charts: Color Letters for Value Area and Point of Control Instead of Background For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
